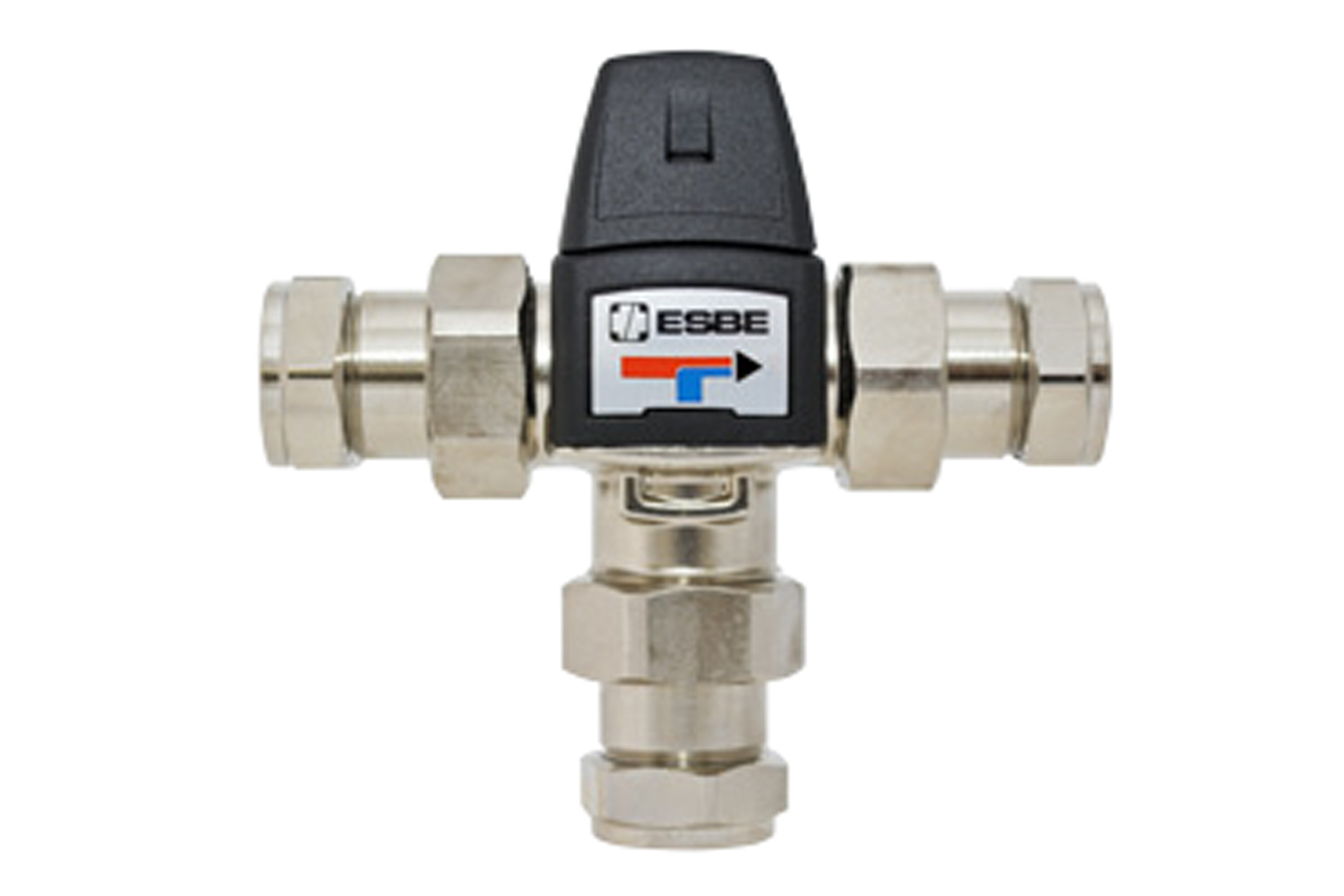

ESSCO TMV3 THERMOSTATIC MIXING VALVE – VTA323 X 15MM L’PATTERN

Part Ref: 31106312


ESBE Thermostatic Mixing Valves are licensed for use with washbasins, showers and baths in higher risk and Healthcare applications under the requirements of the NHS Estates D08 specification.

  • ESBE thermostatic mixing valves are available in standard format 15mm and 22mm, and VTA353 is available in Combi format.
  • Available in T pattern (VTA353) but also L pattern(VTA323)- saving customers 40% installation time.
  • Combi versions are supplied complete with 4-in-1 angle inlet connectors incorporating stainless steel mesh strainers, non return valves, 1/4”BSP pressure tapping point and 1/4-turn lever ball valves.

USES

ESBE thermostatic mixing valves are ideal for reducing temperatures in any situation where normal hot water at 60°C may accidentally scald and cause serious burns. Used in showers, basins and baths, they ensure washing safety in schools, sports centres, factories, prisons, and many other venues.

Categories: , ,
Manufacturer:

Asset 1

Technical Details

  • Pressure Class: PN10
  • Working Pressure: 10 Bar
  • Differential Pressure: Max 3 Bar
  • Media Temperature: Max 95°c
  • Temperature Stability: ± 2°c *
  • Connection: External Thread (G) 1” Compression fitting (CPF)

* Valid at unchanged hot/cold water pressure, minimum flow rate 4l/min. Minimum temperature differential between hot water inlet and mixed water outlet of 10°C

Material

  • Valve housing: Dezincification resistant brass, DZR
  • Surface treatment: Nickel plated

PED 07/23/EC, article 3.3

Pressure equipment in conformity with PED97/23/EC, article 3.3 (sound engineering practice). According to the directive the equipment shall not carry any CE mark.

TMV3 certificate No: BC1515/214, BC1516/1214
