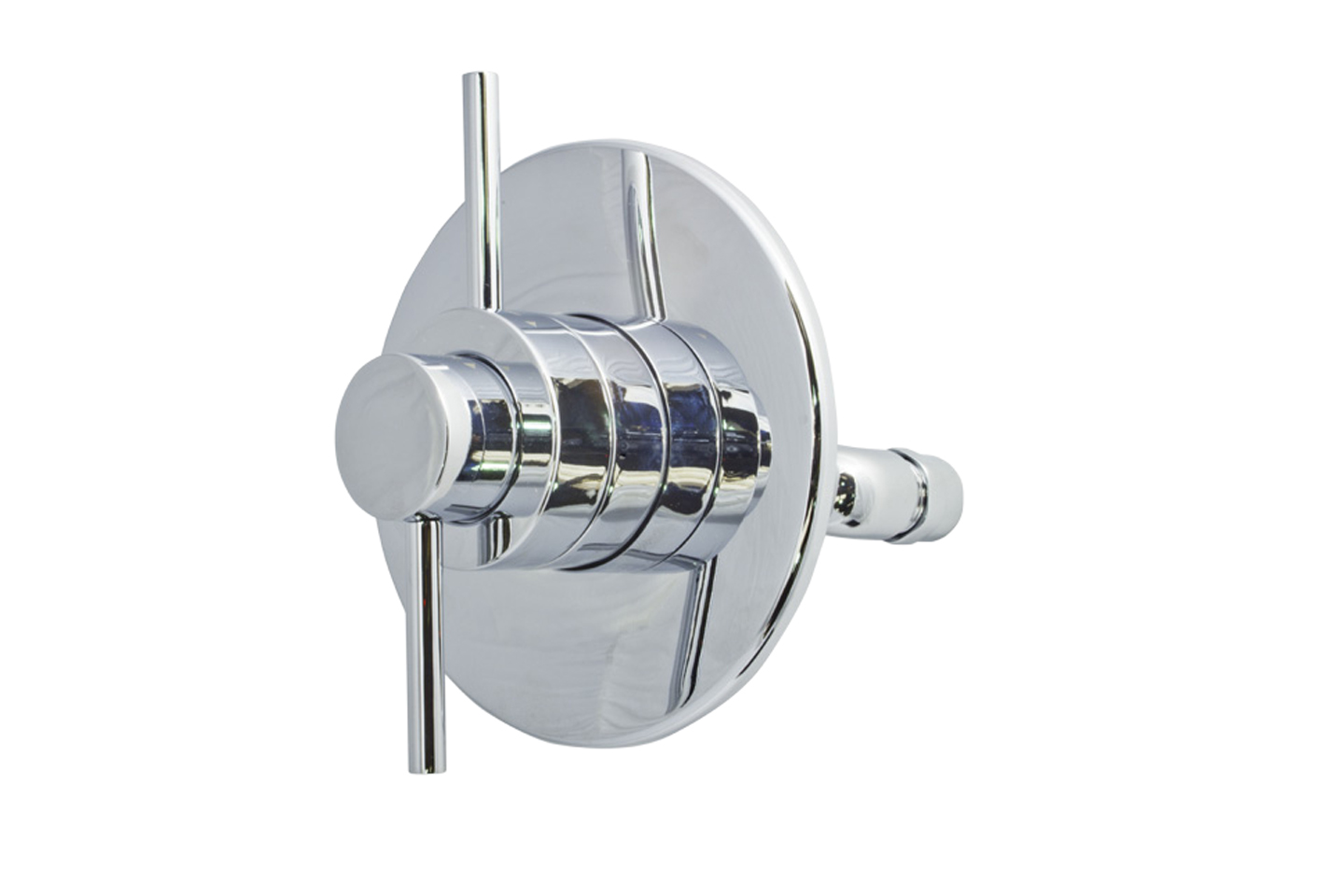

ESSCO TMV3 CONCEALED THERMOSTATIC SHOWER VALVE OPERATING PRESSURE 0.2-5 BAR PRESET TEMP 41°C

Part Ref: ESS-1511


  •  The ESS-1501/11 thermostatic shower mixing valve is an attractive dual concentric control valve and is ideally suited for single point shower applications where durability and high performance is essential.
  • The TMV3 approved shower offers dual control operation with separate temperature and on-off control.
  • Exposed or recessed mounting and optional long lever control available.
  • Top or bottom outlet.
  • Normal control temperature at 41°C, adjustable by the installer.
  • Suitable for vented or unvented systems and with combi-boilers.
  • Pipe centres 150 mm (+/-5mm).
  • Can be used with a range of anti-vandal, fixed heads or flexible shower kits.
  • 1 year warranty

USES Dual Control TMV3 shower ideal for reducing temperatures in any situation where normal hot water at 60°C may accidentally scald and cause serious burns. When installed and maintained correctly, they ensure washing safety in schools, sports centres, factories, prisons, and many other venues.

APPLICATIONS Certified for healthcare use under the following requirements: – HP/LP-S: High / Low pressure shower.

Categories: ,
Manufacturer:

Asset 1

Technical Details

  • Thermostatic shower valve (TMV3 certified)
  • Maximum hot supply temperature: 90°C
  • Maximum setting range: 37°C to 43°C
  • Normal control temperature: 41°C (adjustable)
  • Minimum differential (Td) between hot and mixed water: 10°C (cold water failsafe)
  • Maximum differential: compliant to D08 spec (BSEN 1111)
  • Recommended pressure (dynamic): 0.2 to 3.0 bar.
  • Min/Max pressure: 0.2 to 5 bar
  • Inlet connection: 15mm
  • Outlet connection (top or bottom): 15mm
  • Pipe centres: 150mm
  • NRV’s fitted to hot and cold inlets

Buildcert number BC1614/0815 WRAS 1409951 ESS-1501 and ESS-1511 TMV3 Dual Control Showers
