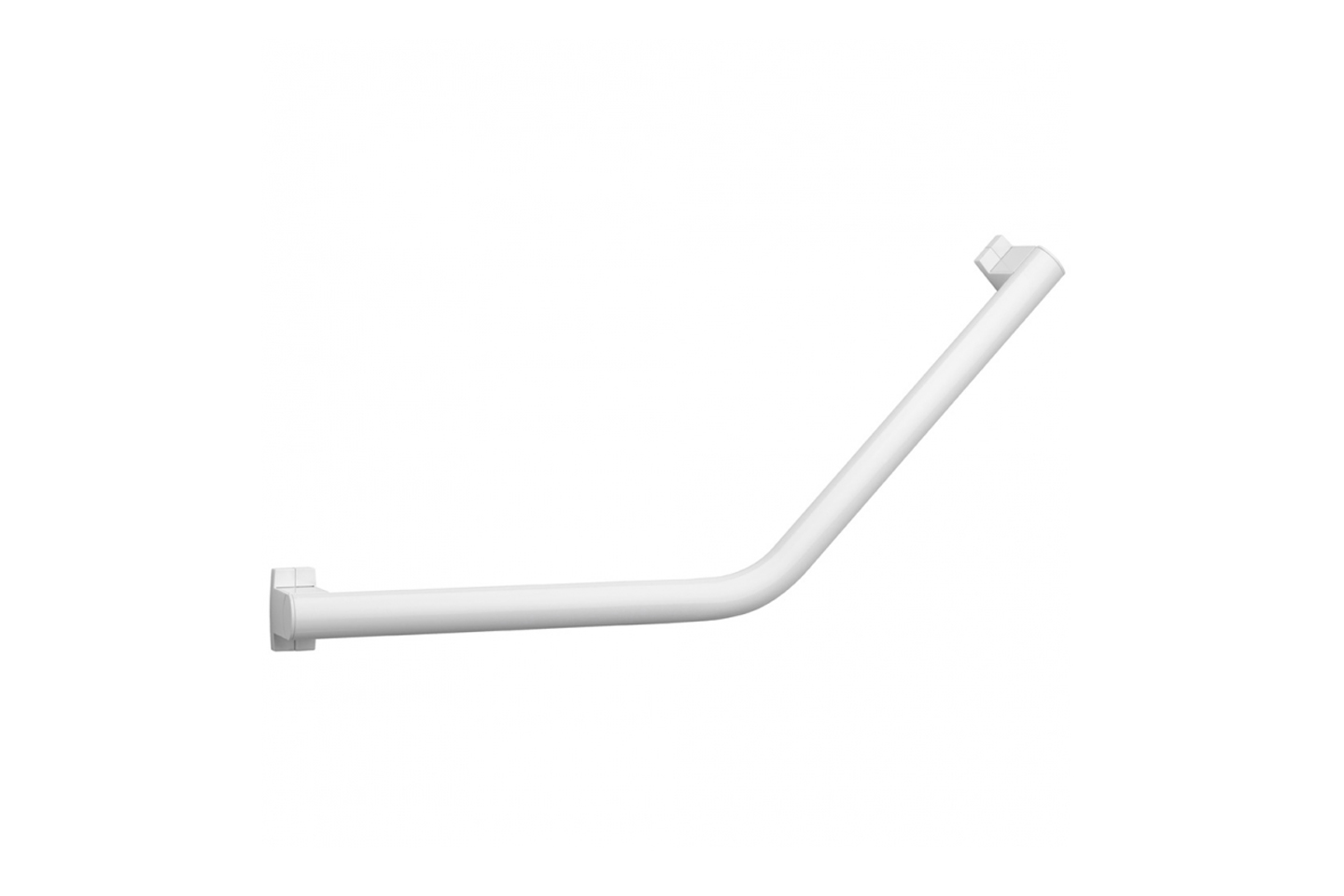

ARSIS 135° angled grab bar, 400 x 400 mm, White Epoxy-coated Aluminium

Part Ref: 049833


Asset 1

Description

Product advantages

  • Elliptic tube for an improved grip.
  • Possible to fit it “to the right” or “to the left”.
  • Elegant and design shape.
  • Corrosion resistant warranty.
  • 2 fixing points.
  • Symmetrical 400 x 400 mm.
  • Elliptical tube in white epoxy-coated aluminium.
  • White resin cover plates.
  • Wall fixings included.
  • Design coordinated with all ARSIS Comfort items.
  • Perfectly suitable for use in the hospitality industry.




Downloads

File File size
pdf fiche_technique_049833 mp brand 627 KB

Technical Details

Material Aluminium
Finish Epoxy-coated
Color White

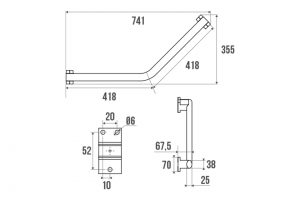

Dimensions 400 x 400 mm
Diameter Ø 38 x 25 mm
Gross weight 0.760 kg
Net weight 0.665 kg
Packaging Plastic protection bag + Hanger for display
CE Marking : safe load 150 kg
Laboratory tests 225 kg
Guarantee 10 years
Gencod 3563390498330
Custom code 7615200000



Recommended height for the horizontal part : 800 mm from the ground. Grab bars provide support and added safety if properly fitted in accordance with our technical instructions. Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory. The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment. Before drilling, physically hold the product against the wall at desired position and mark the hole locations. All the fixing points must be respected. After installation and before use, make sure that all fixing screws are tightened securely. DO NOT use the grab bar as a step. DO NOT sit on or hang from the grab bar.



IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning.

CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
