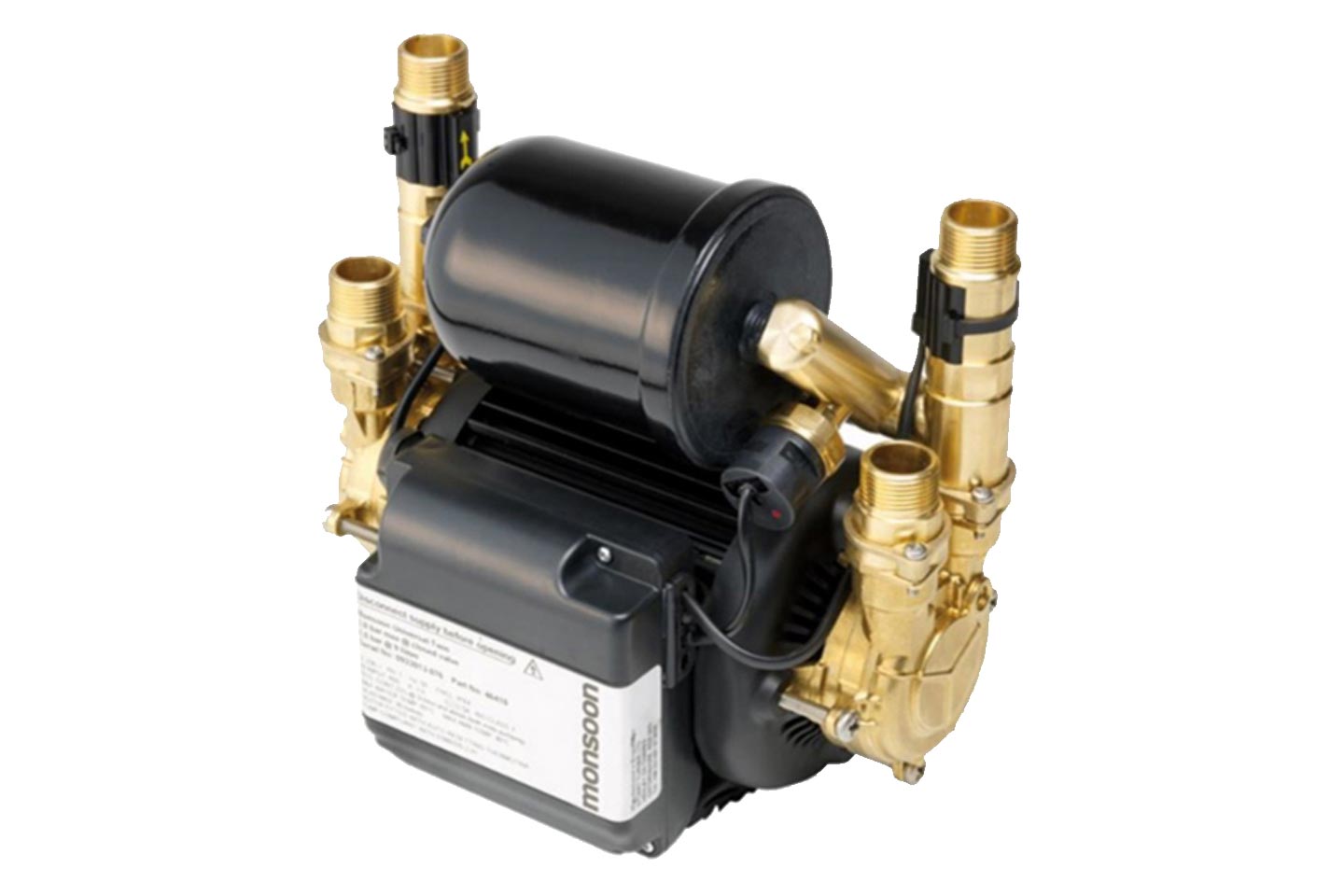

Stuart Turner Monsoon Universal 2.0 bar Twin – Shower & whole house pumps

Part Ref: 46480


Monsoon Universal 2.0 bar Twin pumps are designed for installation into vented systems to pump both the hot and cold water supplies – boosting both equally. Suitable for both positive and negative head applications.

Categories: ,
Manufacturer:

Asset 1

Description

Monsoon Universal pumps do not require a gravity flow of water to start.

Application

  • Boost hot and cold water services to the complete home, bathroom, kitchen or cloakroom.
  • Pressurise the supply in applications such as loft conversions, where outlets are higher than the water source.

Key Features

  • 5 year guarantee
  • 2.0 bar pressure
  • Suitable for positive or negative head applications
  • Premium quality brass pump supplied with flexible hoses with integral ISO valves
  • Very quiet operation
  • WRAS approved product
  • Continuously rated
  • Anti-vibration feet
  • EPDM/PTFE/Al. Oxide seal
  • Pre-wired with 1.5 metre power cable
  • UK Specification: Supplied with 22 mm push-in x 300 mm anti-vibration flexible hoses with integral isolating valves
  • ROI Specification: Supplied with 21 mm push-in x 300 mm anti-vibration flexible hoses with integral isolating valves
  • Export Specification: Supplied with G ¾ female x 300 mm long hoses


Technical Details

Technical Specification

General
Product code 46480
Guarantee 5 years
WRAS approval 1404701
Features
Pump type Peripheral
Mechanical seal EPDM / PTFE / Al. Oxide
Anti vibration feet
Inlet strainer(s)
Flexible hoses 4
Run on timer 3 sec
Dry run protection
Materials
Pump body Brass
Impeller Brass
Performance
Maximum head (closed valve) 2.0 bar
Performance @ 9 l/min 1.5 bar
Performance @ 18 l/min 1.1 bar
Maximum flow 35 l/min
Maximum static inlet pressure 8 metres
Maximum static outlet pressure 8 metres
Maximum working pressure* 600 kPa (6 bar)
Maximum ambient air temperature 40 °C
Min / Max water temperature** Min 4 °C / Max 65 °C
Flow switch sensitivity (approx) 0.6 l/min
Pressure vessel air pre-charge 0.9 bar (13 psi)
Connections
Pump connections G ¾ male
Flexible hoses
Connections (UK model) G ¾ female x 22 mm push-in
300 mm long
Isolating valves on all hoses
Connections (ROI model) G ¾ female x 21 mm push-in
300 mm long
Isolating valves on all hoses
Connections (Export model) G ¾ female x G ¾ female
300 mm long
Motor
Type Induction, auto-reset thermal trip
Duty rating Continuous (S1) @ 9 l/min and above***
Electrical
Power supply/phase/frequency 230 V a.c./ 1 / 50 Hz
Current (full load) 1.9 Amps
Power consumption 435 Watts
Fuse rating 5 Amps
Power cable (pre-wired) 1.5 metres
Physical
Enclosure protection IPX4
Length 265 mm
Width 162 mm
Height (excluding hoses) 243 mm
Weight (including fittings) 8.8 Kg

* The maximum pressure that can be applied to the pump under any installation conditions.

** A stored water temperature of 60 °C is considered sufficient to meet all normal requirements and will minimise deposition of scale in hard water areas.

*** Both heads pumping 4.5 l/min and above.
