Description
Application
- Boosting water pressure and flow in laboratories, stables, kennels, waste bin stores and wash down stations

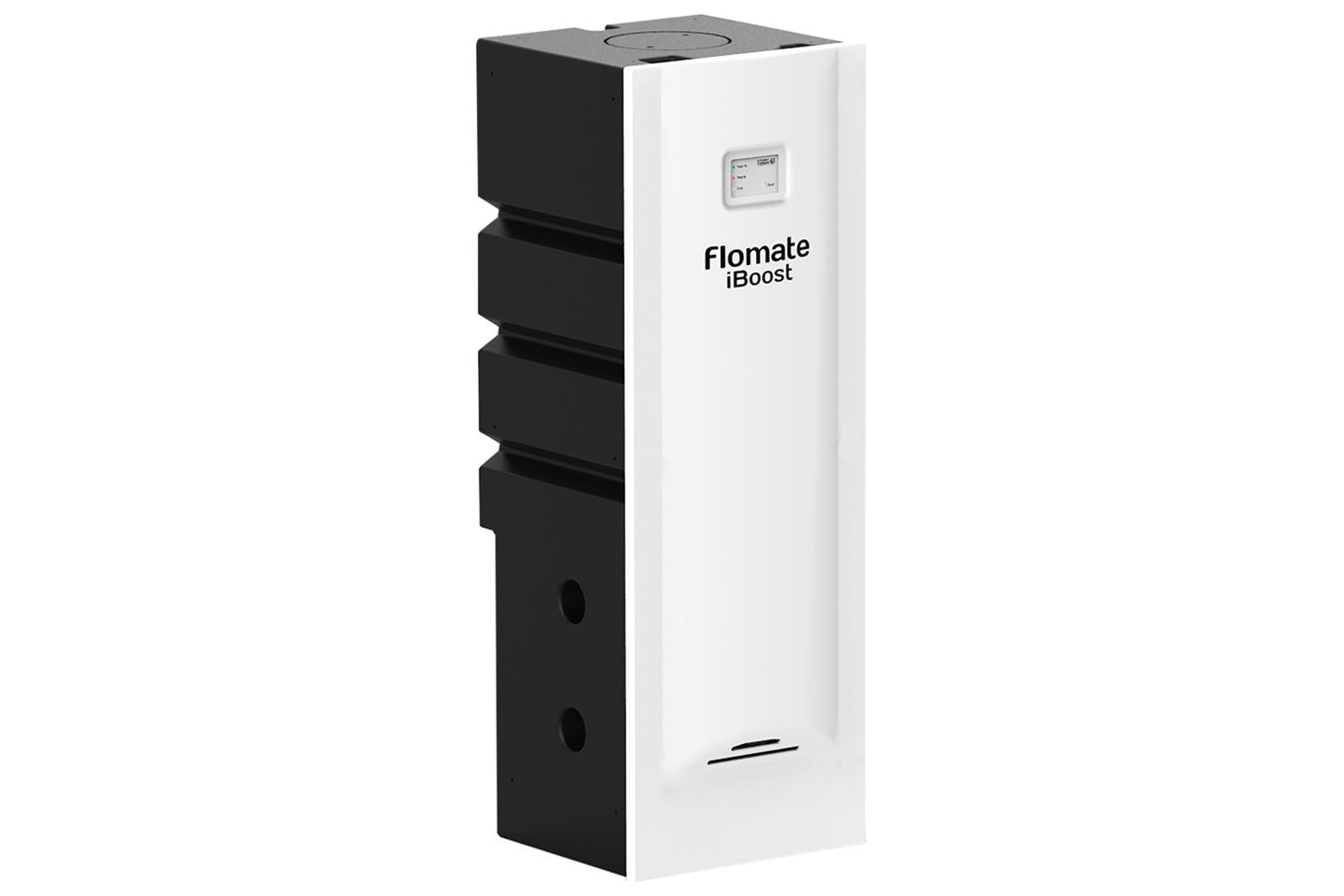

Stuart Turner Flomate iBoost CAT 5 – Mains Water Pressure & Flow Boosting System
Part Ref: 46677
The Flomate iBoost CAT 5 water pressure and flow boosting system features a weir overflow making it suitable for use in applications where the risk of backflow contamination from Category 5 fluids exists.
Technical Details
| General | |
| Product code | 46677 |
| Guarantee | 3 years |
| Features | |
| Fluid risk compatibility | CAT 5 |
| Air gap | Type AB |
| Pump type | Centrifugal |
| Break tank water capacity (usable) | 200 litres |
| Fill rate | 20 l/min* |
| Pressure vessel | 8 litres |
| Dry run protection | |
| Control interface | Power on / Pump on / Dry run indicators Pump reset button |
| Materials | |
| Break tank | Polyethylene |
| Pump body | Brass / stainless steel |
| Impeller | Stainless steel |
| Performance | |
| Maximum head (closed valve) | 4.5 bar (450 kPa) |
| Maximum flow | 100 l/min |
| Maximum inlet pressure (tank fill valve) | 7 bar (700 kPa) |
| Maximum static outlet head | 15 metres |
| Min / Max ambient air temperature | 4 °C – 30 °C |
| Connections | |
| Inlet | G ½ male |
| Outlet | G ¾ male |
| Overflow | G ¾ Compression fitting (dia. 21.5 mm OD pipe) |
| Flexible hoses | |
| Connections (outlet only) | G ¾ female x 22 mm push-in 220 mm long |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Continuous (S1) |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 5.5 Amps |
| Power consumption | 1260 Watts |
| Fuse rating | 10 Amps |
| Power cable (pre-wired) | 3.0 metres |
| Physical | |
| Depth | 529 mm |
| Width | 536 mm |
| Height (excluding hoses) | 1504 mm |
| Dry weight (including fittings) | 55 Kg |
| Filled weight (maximum) | 255 Kg |
*Assumes 1 bar inlet pressure.
