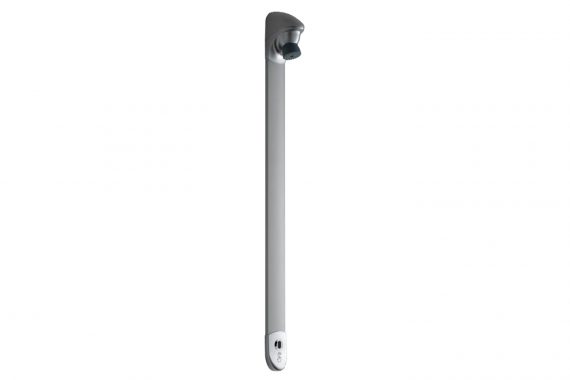

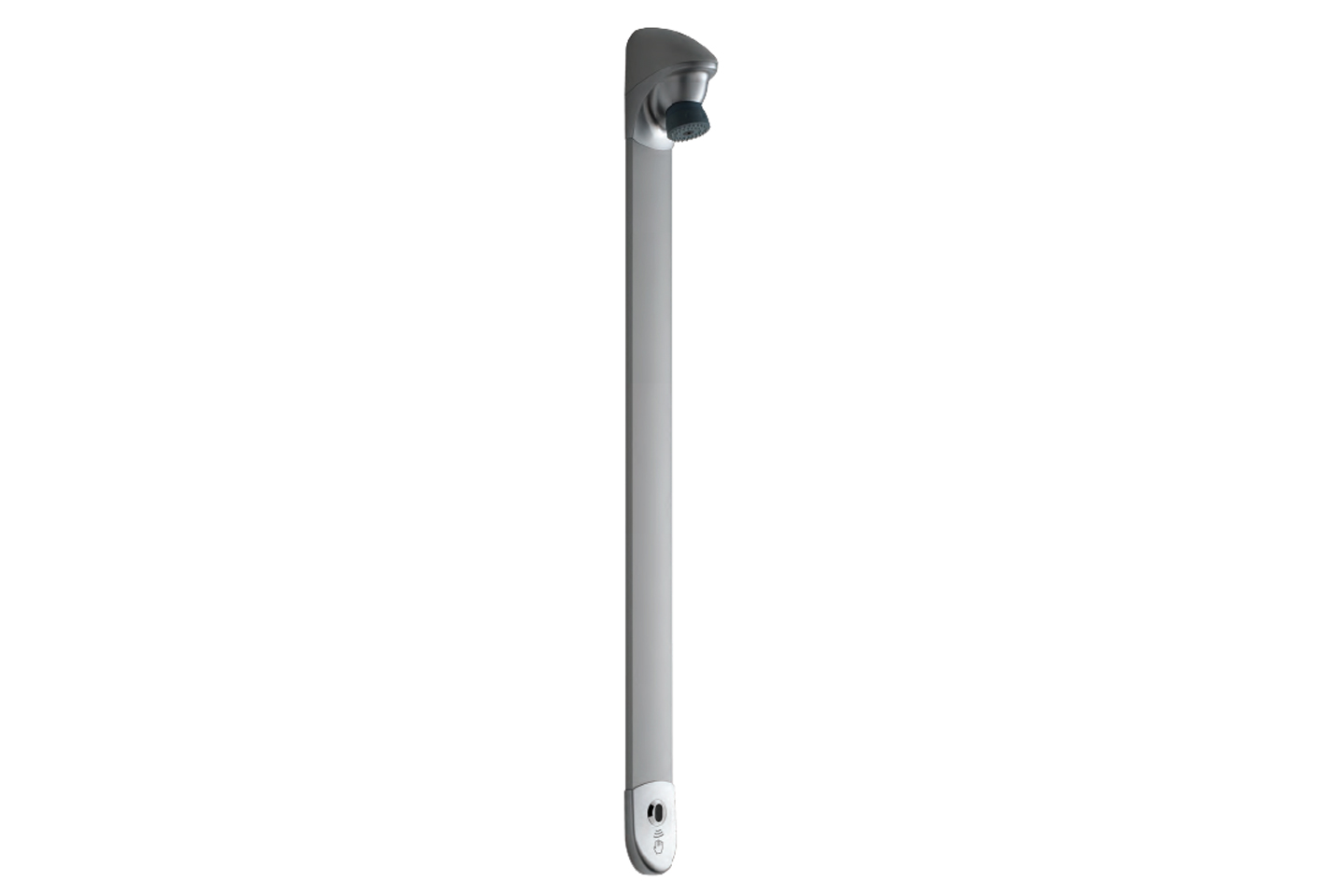

PRESTO SHOWER PANEL DL 400 E Sensor, Ref. 27471 – Single electronic / sensor shower tap with battery and straight stop valve

Part Ref: 27471


Categories: , ,
Manufacturer:

Asset 1

Technical Details

Working pressure:

  • 1 to 5 bar

Flow:

  • 6 to 8 l/mn at 3 bar with integrated flow regulator
  • Anti-water-hammering design
  • Fixed shower head with orientable shower jet and anti-limescale spikes

Operation:

  • Hygienic electronic detection cell suitable for elderly and disabled people
  • Detection range of the hand in front of the cell : 10 cm

Flow time:

  • 30 seconds – Adjustable through PRESTOCOM
  • Start / Stop function. Stop not possible during the first 10 seconds – Adjustable through PRESTOCOM
  • Adjustable duration and frequency of duty flush function through PRESTOCOM

Hydraulic supply:

  • G 1/2″ (15×21) top water inlet with straight stop valve
  • For cold or premixed water

Power supply:

  • 6 volt CRP2 lithium battery in integrated box

Material and colour finish:

  • Injected molded metal body and cover
  • Extruded profile in Aluminium-MagnОsium-Silicium alloy 6060

Thermal resistance:

  • Resistant to a temperature of 75°C for 30 minute-thermal-shocks

Security:

Shipped with:

  • VBA screws and nylon plugs
  • MF G 1/2″ stop valve and filters

Standard & approvals:

  • Molded chrome-plated body in accordance with EN 12540
  • 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
  • Brass UBA List compliant

File File size
pdf Presto 27471 mp 302 KB
