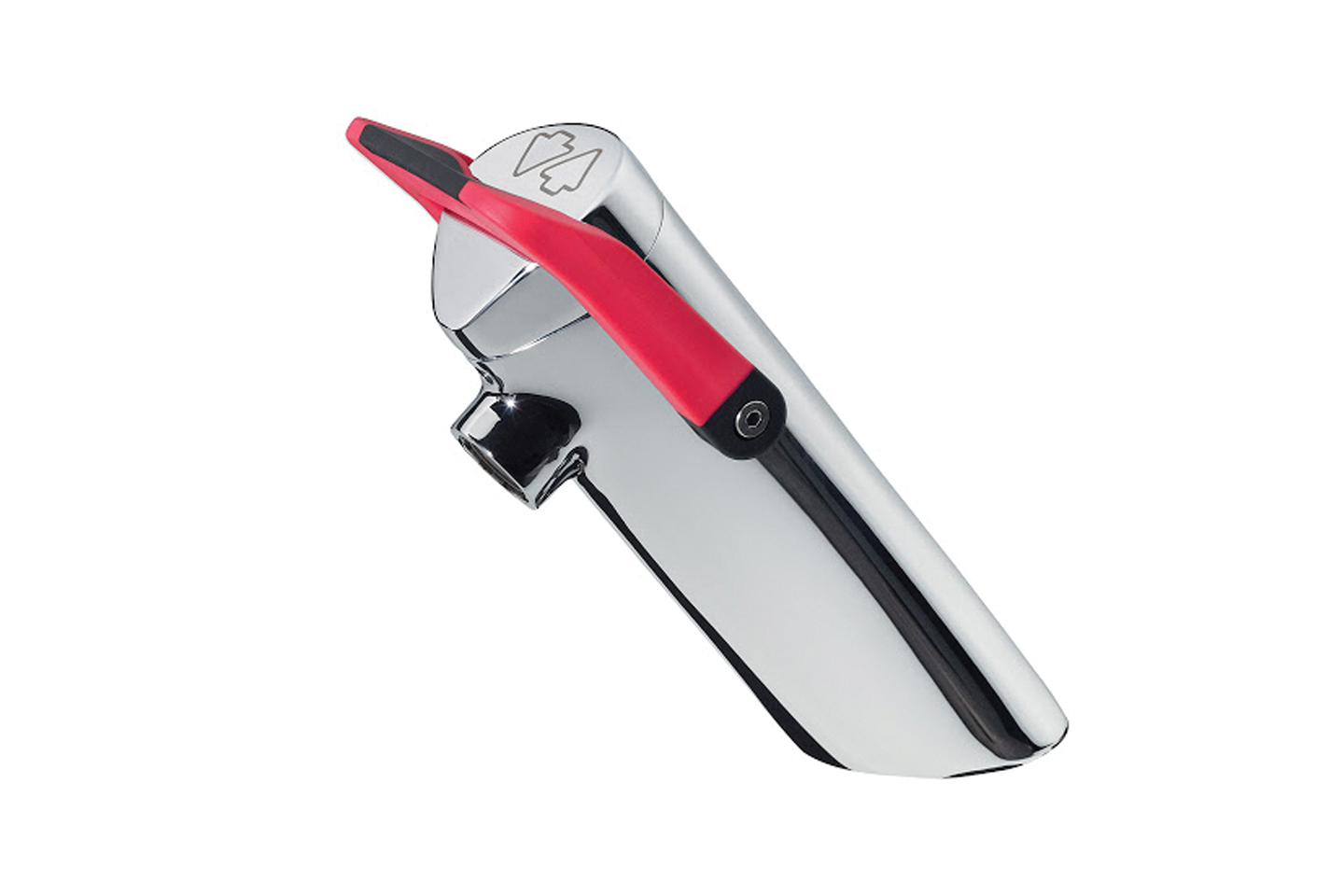

PRESTO NEO DUO – SINGLE DECK-MOUNTED TAP, Hot or Cold water – 15 Sec Timed Flow

Part Ref: 64712


The PRESTO NEO® DUO deck-mounted tap activates water flow with an easy-to-use lever by lifting up or pressing down the lever. Water flow will automatically stop after 7 or 15 sec° timed flow or double timed flow (7 & 11 sec).

ADVANTAGES

  • For “dual timed flow” version: a short timed flow for hands moistening, and a longer one for rinsing
  • Two-coloured ergonomic lever (strong contrast), suitable for children, elderly people and people with reduced mobility
  • Patented self-cleaning device enables constant timed flow
  • 4-position flow adjustment inaccessible to users. Possibility to switch aerator to 2l/min on-site.
Categories: ,
Manufacturer:

Asset 1

Technical Details

Function

  • The PRESTO NEO DUO deck-mounted tap activates water flow with an easy-to-use lever by lifting up or pressing down the lever. Water flow will automatically stop after 15 seconds timed flow.

Recommended working pressure:

  • 1 to 5 bars

Flow:

  • 3 l/min at 3 bars – 4-position setting – Anti water-hammer system

Flow time

  • 15 seconds – lever upwards or downwards

Hydraulic supply:

  • G 1/2” x 40

Thermal resistance:

  • This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

Safety :

Convenience :

  • Two-coloured ergonomic lever (strong contrast), suitable for children, elderly people and people with reduced mobility

Delivered with :

  • 1 Filter gasket – 1 base gasket – 1 fixture nut + 1 stainless steel washer – 1 Nut for 12×14 tube – 1 rubber flat gasket – 1 coloured sticker

Standards / Approvals:

  • NF acoustic class II – Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 – Nickel-Chrome surface treatment compliant with NF EN12540 – Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
