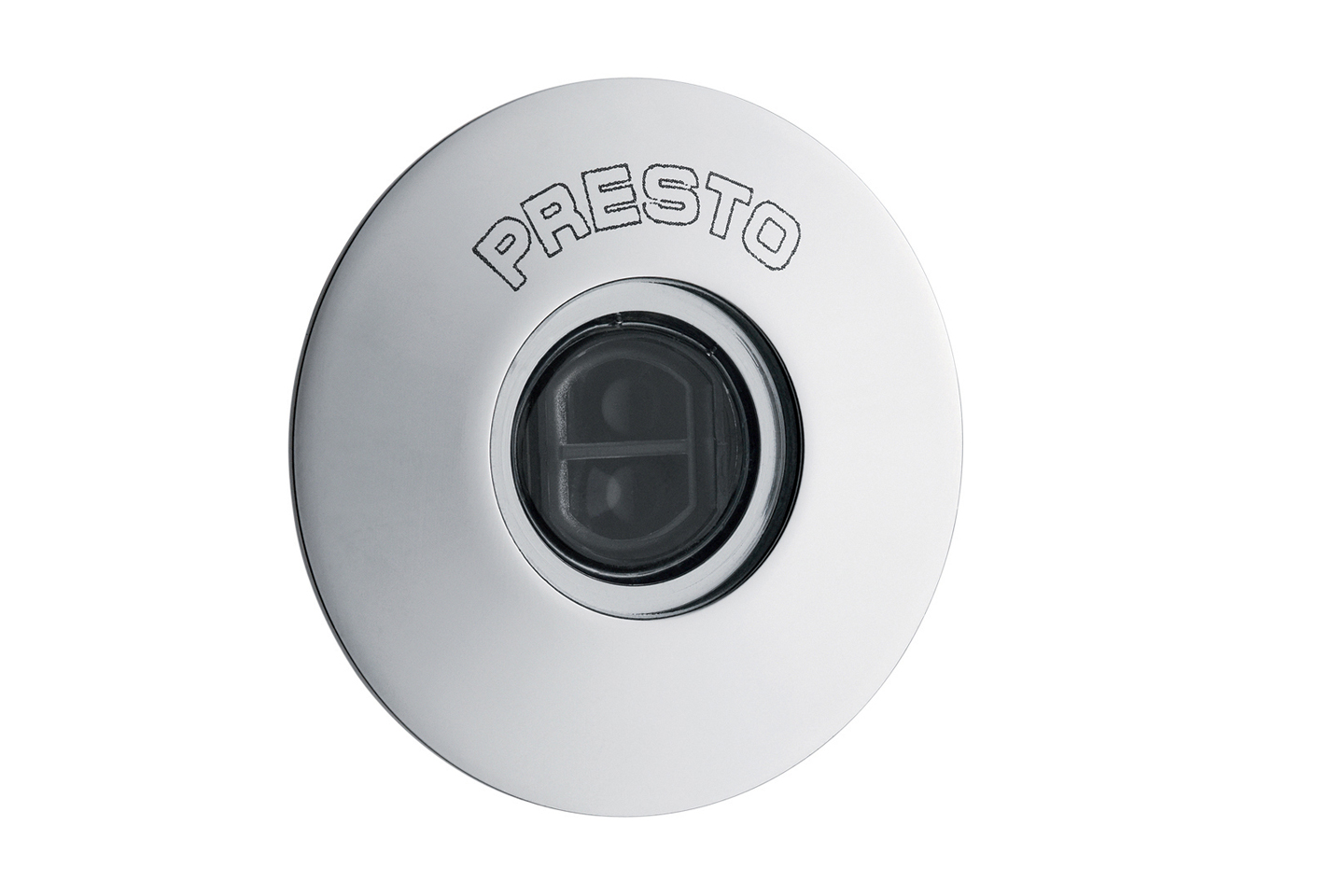

PRESTO COMPLETE KITS – EXTRA FLAT DETECTION Ref. 52465  |  For partitions 50 to 200 mm thick

Part Ref: 52465


Function:

The modular solution perfectly integrates all environments. Only removable from the service duct, it has a range regulation, flow timer and safety mechanism

ADVANTAGES

  • Up to 80% savings in water compared to a standard tap
  • It is possible to stop the water flow
  • Extra-flat cell for tamper-proof, cross-partition installation
Categories: ,
Manufacturer:

Asset 1

Technical Details

Function:

  • The modular solution perfectly integrates all environments. Only removable from the service duct, it has a range regulation, flow timer and safety mechanism

Usage:

  • For urinals: in service duct area (50 to 200 mm thick partitions)

Recommended working pressure:

  • 1 to 5 bars

Flow:

  • 10 l/min flow limiter – Anti water-hammer system

Flow time:

  • 7 seconds (± 1sec) – Configurable from 3 to 16 seconds

Range:

  • Pre-set to 600 mm – Configurable from 100 to 700 mm

Hydraulic supply:

  • On G 3/4″ (20×27) solenoid, cold or pre-mixed water

Electricity supply:

  • 230 Volt / 12Volt – 6VA transformer built into the box

Thermal resistance:

  • Withstands thermal shocks of 75°C for 30 minutes as part of a thermal shock programme

Delivered with:

  • “- IP65 detection cell for 1 to 200 mm partition supplied with 2 m of cable – 50 3/4″ (20×27) solenoid – 1 Stop valve – 1 IP65 electronic box (including the transformer)”

Standards / Approvals:

  • Nickel-chrome surface treatment compliant with NF EN12540 – Neutral salt spray (NSS) resistant: 200 hours according to NF ISO 9227 – Safety transformer compliant with standard EN 60 742
