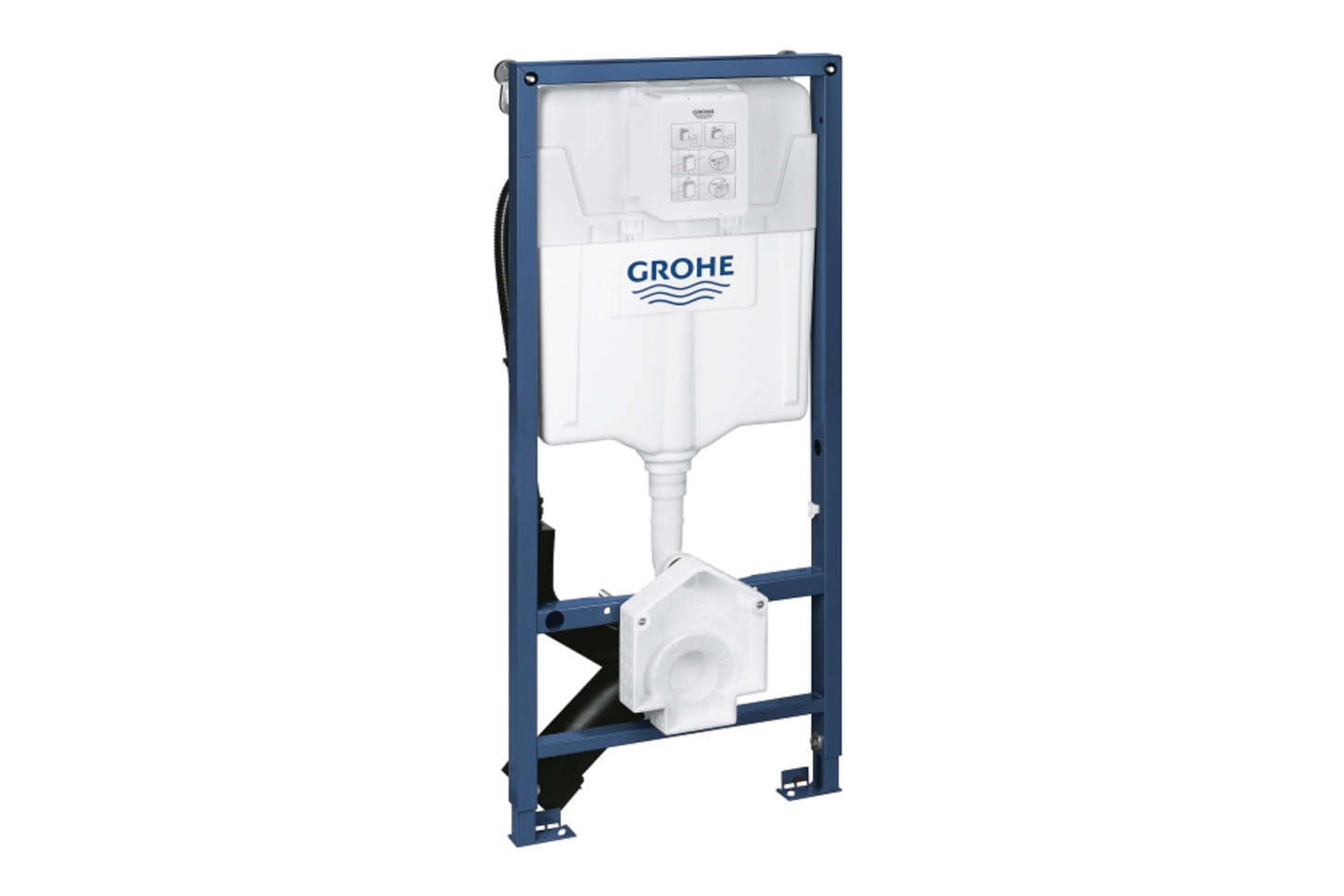

Grohe Rapid SL for GROHE Sensia® IGS & Arena shower WC

Technical Details

• flushing cistern GD 2 with connections for GROHE Sensia
• shower toilets (GROHE Sensia IGS/GROHE Sensia Arena) with maintenance access
• 1.13 m finished installation height for on-the-wall installations or studded walls
• powder coated steel frame, self-supporting for dry-cladding, completely pre-assembled with fixed connections
• for single or series installation quick adjustment, lockable fixing material
• TÜV approved
• 2 WC fixing bolts
• fixing device for ceramic
• distance of fixing bolts 180/230 mm
• PP outlet bend Ø 90 mm
• depth adjustable
• reducer Ø 90/110 mm
• inlet and outlet connecting set
• flushing cistern GD 2, 6 – 3 l pneumatic discharge valve offering 2 modes of  operation: dual flush or single flush
• rear water supply
• low noise (group I acc. to German Noise Specification)
• Insulated against condensation
• ½” water supply connection including integrated
• angle valve and push fit flexible hose union
• no tools required for the installation  of the inspection shaft incl. protection  during construction phase
• for vertical or horizontal use
• 2 wall brackets with fixing material
• universal water connection for shower toilets Sensia Arena and Sensia IGS concealed socket for mains supply
• positioning help for electrical connection for mounting of small flush plates please order  revision shaft 40 911 000 (sold separately)
