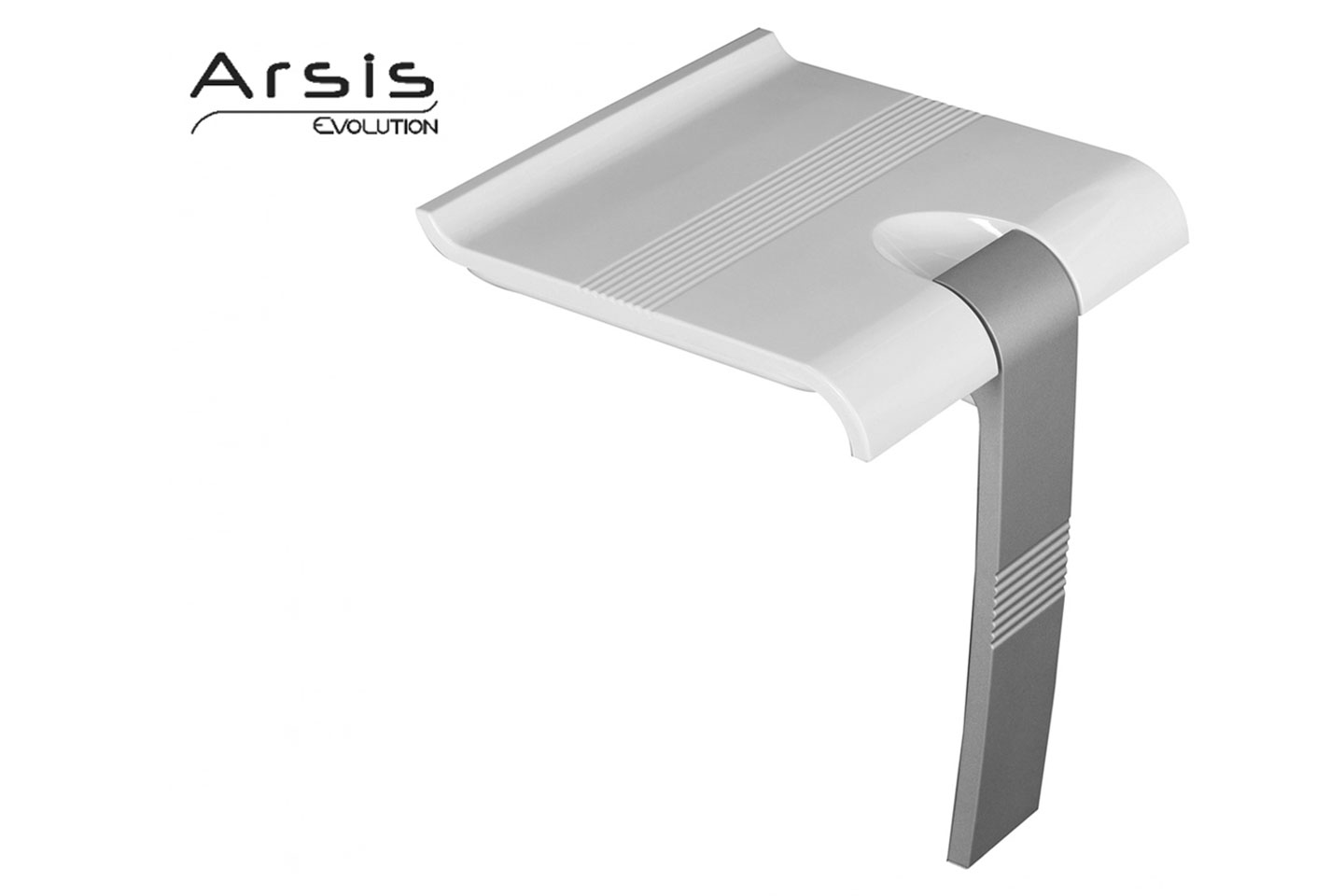

Part Ref: 047731 ARSIS Folding Shower Seat, White & Mat Grey


Asset 1

Description

  • An innovative and unique product: can be unclipped to enable the mounting of the ARSIS shower shelf.
  • Large size seat with a refined design for a maximum of comfort.
  • The ideal concept to transform its shower and make it accessible in complete safety.
  • Upgradeable product !
  • Grey cast aluminium chair leg.
  • Ergonomic 450 mm large size seat made of white polymer.
  • Epoxy-coated aluminium structure (tube Ø 25 mm).
  • Locking position, tamper-proof lock.
  • Can be unplugged from its wall bracket for cleaning and occasional community use.
  • Can be replaced by a shower shelf ref. 047735 or 047736 if the user doesnt need the seat.
  • Standard height: 500 mm.
  • Wall fixings included.
  • Concealed fixings.
  • Design coordinated with the ARSIS shower bars.
  • Perfectly suitable for use in the hospitality industry.


Downloads

File File size
pdf fiche_technique_047731 mp brand 582 KB

Technical Details

Material Polymer & Aluminium
Finish Epoxy-coated
Color White & Mat grey

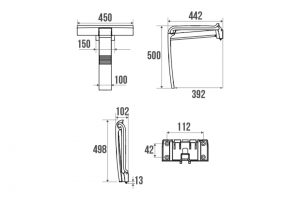

Dimensions 442 x 450 x 500 mm
Diameter Ø 25 mm
Gross weight 3.300 kg
Net weight 2.700 kg
Packaging Cardboard Box
CE Marking : safe load 150 kg
Laboratory tests 225 kg
Guarantee 10 years
Gencod 3563390477311
Custom code 7615200000
Specific features The Arsis shower seat is only designed for a sanitary use.



Careful consideration and selection of the appropriate wall fixings according to the wall-mounted support is required to ensure the long life of your accessory. The use of stainless steel screws (Ø 4 mm) is highly recommended to prevent corrosion in damp environment. Before drilling, physically hold the product against the wall at desired position and mark the hole locations. All the fixing points must be respected. After installation and before use, make sure that all fixing screws are tightened securely. The shower seat provides support and added safety if properly fitted in accordance with our technical instructions. For use in seated position. To guarantee the user safety, DO NOT rise up on the seat. When the seat is raised, DO NOT use it as a grab bar. To avoid any risks of pinching out, DO NOT put your fingers in the mobile parts. The product does not contains any dangerous substance for the health. We disclaim all liability for any personal injury resulting from inappropriate installation or use of this seat.



IMPORTANT: To ensure the sustainability of the product and user safety, we recommend using a solution made of mild soap for cleaning.

CAUTION: DO NOT USE cleaning products made of: etones, hydrocarbons, acids, bases, esters and ethers. After use of a cleaning product, make a rinsing in the clear water.
